LED Flameproof Well Glass
Pyrotech provides all types of outdoor weatherproof industrial lights and Flame Proof LED Well Glass is also in our product list. It is a best-led lights luminaire manufacturing company/supplier based in Udaipur, India.
These lights are available in different sizes and wattage and can be provided to the client as per requirement. These flameproof well glass lamp fittings are used in cement plants, oil and gas industries, pharmaceutical, chemical industries, and many more.
These industrial LED well glass fixtures are having flameproof pressure die cast aluminum enclosure which is custom designed for maximum thermal efficiency and with toughened type ‘A’ glass.
The luminaries are pre-wired with high-efficiency power corrected LED drivers designed for optimum efficiency. These explosion-proof well glasses are used at hazardous locations. It is also available in 24V AC for confined space application and 110V AC for mines application. 110V/220V DC UPS supply could also be given at the time of power failure.
We serve all sectors of the professional lighting segment such as Power, Cement, Steel, Glass, Oil & Gas, Chemical, Municipalities, PhD’s etc. We are also making LED lights for various reputed lighting companies as OEM and exporting worldwide.
Technical Highlights
- OSRAM Certified Partner
- Up to 80% energy saving
- Aesthetically designed aluminium extruded /die-cast enclosures
- Optimized heat sink design for excellent thermal management
- Highly efficient constant current LED drivers
- Short circuit & open circuit protection on driver
- IP-65
- High tensile zinc passivated hardware
- Epoxy Powder coating
Features
- LM – 80 Certified
- THD < 10%
- Long service life of upto 50,000 hrs.
- Power factor >0.9
- Surge Protection (>4kV)
- Power efficiency >80%
- Color rendering index (CRI)>65
- Light angle can be made application specific
- High quality toughened glass
- No UV or IR radiation
- Extremely cost effective operation(>2kV)
- Green and Environment Protection
- Retrofit Solutions Available
- Flameproof Enclosure
Applications
- Suitable for illuminating Industrial area
- Suitable for illuminating explosive areas

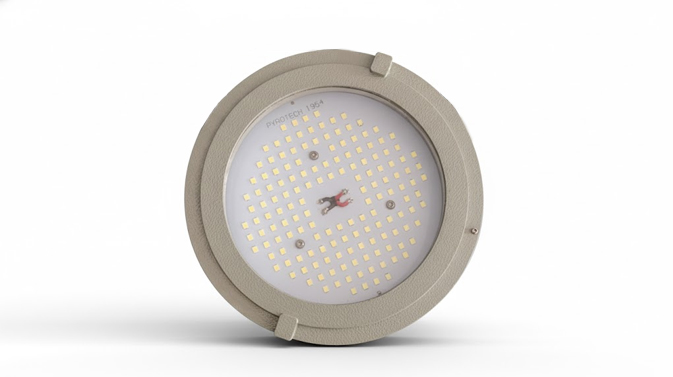

LED FLAMEPROOF WELL GLASS
| Ordering Code | PF-11-D-L-WXOA |
| Power Consumption (W) | 25/45 |
| Input Voltage | 24/140-270V AC, 110/220V DC |
| Dimension (mm) | 142(Dia)X155(D) |
| Lens | Without Lens |
| LED Colors | CW/WW/NW |

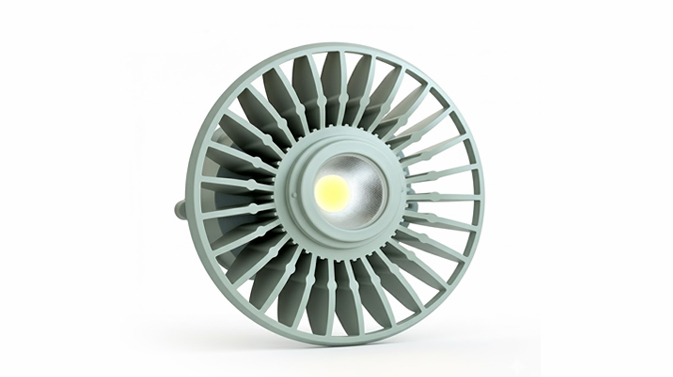

LED FLAMEPROOF WELL GLASS
| Ordering Code | PF-11-D-L-WXOA |
| Power Consumption (W) | 60/120 |
| Input Voltage | 140-270V AC, 110/220V DC |
| Dimension (mm) | 255(Dia)X165(D) |
| Lens | Without Lens |
| LED Colors | CW/WW/NW |
LED FLAMEPROOF WELL GLASS
| Ordering Code | PF-11-D-L-WXOA |
| Power Consumption (W) | 150 |
| Input Voltage | 140-270V AC, 110/220V DC |
| Dimension (mm) | 350(Dia)X210(D) |
| Lens | Without Lens |
| LED Colors | CW/WW/NW |
