Conventional Fire Alarm Control Panel

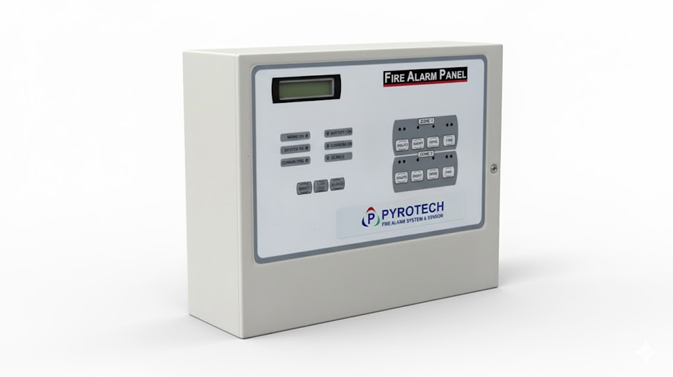

Conventional Fire Alarm Control Panel is a 24volt, 2 or 4 zones, Class B, Conventional Fire Alarm Control Panel. It is designed exclusively to meet the latest market requirements and microprocessor technology, with stand-by batteries. It has functions of operation indication, fault indication, alarm indication, and cable checking for short circuits or broken circuits.
Features:
- One set each of volt-free changeover contacts operated on fire and fault.
- Class change input for remote control.
- Zone and alarm disablement.
- 28V 125mA fused supply permanently available.
- 28V 300mA fused supply available for fire alarm bells or sounders.
- The passive repeater is available.
CONVENTIONAL FIRE ALARM CONTROL PANEL
| AC Power | AC220V±10% 50Hz, 2.0 Amps. |
| Battery | Maintenance free dry batteries, Max. charger capacity- 4AH battery |
| Total 24 V system power | 3.0 amps |
| Standby Current | 65mA @ DC24V |
| Zone Capacity | Can be connected with 25 fire detectors |
| Fire & Fault Contact Outputs | 1.0 amps DC24V or AC125V |

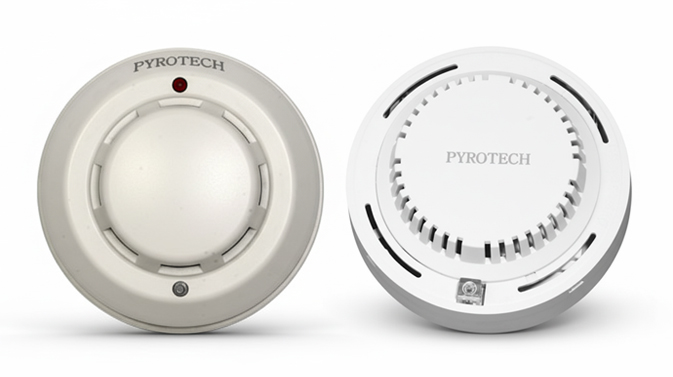

SMOKE SENSORS (CONVENTIONAL/STAND ALONE)
| O/P Voltage (Conventional) | +12VDC / +24VDC/ +48VDC |
| O/P (Stand Alone) | +9VDC Battery for Stand Alone |
| Standby Current | <200µA (for both) |
| O/C (Conventional) | (2 wire) Alarm Current 10mA @ 48 VDC, (4 wire) Alarm Current 70mA @ 48 VDC |
| O/C (Stand Alone) | 9mA |
| Detecting Range | 20M2 |
HEAT SENSORS (CONVENTIONAL/STAND-ALONE)
| O/V (Stand-Alone) | +9VDC Battery |
| O/V (Conventional) | +12VDC/ +24VDC/ +48VDC |
| Standby Current | <200µA (for both) |
| O/C (Stand Alone) | 9mA |
| O/C (Conventional) | (2 wire) Alarm Current 19.2 mA@ 48VDC |
| 2 Detecting Range | 20M |

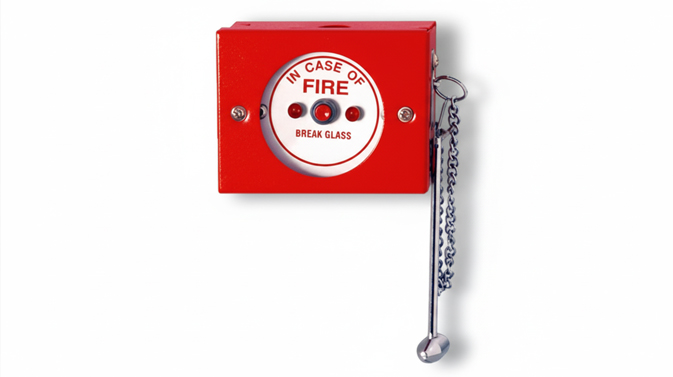

MCP (MANUAL CALL POINT)
| Operating voltage | 24V DC |
| Current Consumption | 150μA/ 60mA@ 24 VDC |
| Application Temp range | 0° C to + 50° C |
| Humidity | 5 to 95% Relative Humidity (non condensing) |
| Dimensions (mm) | 120(W)x95(H)x58(D) |

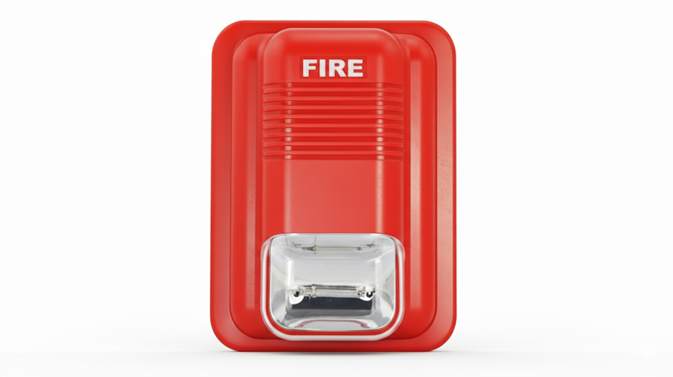

SOUNDER CUM STROBE
| Input Voltage | 24V DC |
| Current Consumption | 100 mA @24V |
| Relative Humidity | 95% |
| Operating Temperature | 0 to 50°C |
| Sound Level | 100db +/- 5db @ 30cm |
| Dimensions (mm) | 125(W)x125(H)x45(D) |

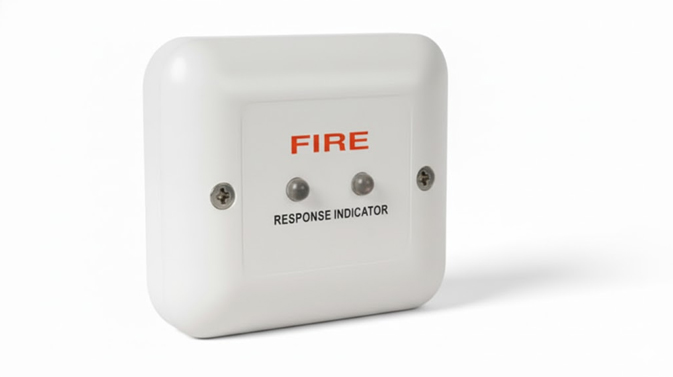

RESPONSE INDICATOR
