LED Flood Light
LED Flood Lights are energy-efficient industrial outdoor lighting solutions designed for high-intensity illumination in industrial plants, infrastructure, and high-mast applications requiring reliable, weather-resistant performance. Pyrotech is an industrial LED Flood Light manufacturer and supplier offering heavy-duty flood lighting engineered with high-quality components for long operational life, low maintenance, low power consumption, and dependable performance in harsh environments. LED Flood Lights are used for industrial plants, warehouses, mining areas, highways, stadiums, power stations, and outdoor infrastructure requiring powerful illumination. Widely deployed across power, cement, steel, glass, oil & gas, chemical industries, municipalities, and PWDs, these industrial outdoor lighting solutions ensure consistent visibility in demanding conditions. Available in multiple sizes, wattages, and colour temperatures, including cool white, warm white, neutral white, and RGB, they are also known as Beam Lights or High Mast Lights. Pyrotech offers 24V AC for confined spaces, 110V AC for mining, optional 110V/220V DC UPS backup, OEM manufacturing, and global export solutions.
Technical Highlights
- OSRAM Certified Partner
- Up to 80% energy saving
- Aesthetically designed aluminium extruded /die-cast enclosures
- Optimized heat sink design for excellent thermal management
- Highly efficient constant current LED drivers
- Short circuit & open circuit protection on driver
- IP-65
- High tensile zinc passivated hardware
- Epoxy Powder coating
Features
- LM – 80 Certified
- THD <10%
- Long service life of upto 50,000 hrs.
- Power factor >0.9
- Surge Protection (>4kV)
- 440V AC protection for more than 30 minutes
- Color rendering index (CRI)>80
- Light angle can be made application specific
- High quality toughened glass
- No UV or IR radiation
- Extremely cost effective operation(>2kV)
- Green and Environment Protection
Applications
- Industries & Institutional Campuses
- Illuminating hoardings illuminating facades
- Illuminating architectural structures
- Illumination of Monuments, Churches, Cricket Grounds

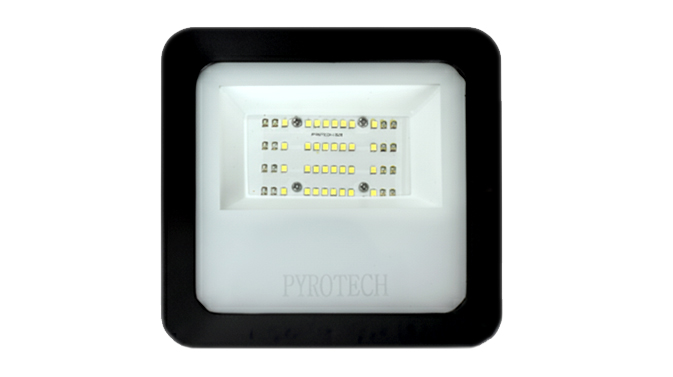

LED FLOOD LIGHT (MINI)
| Ordering Code | PD-17-D-L-WXOA |
| Power Consumption (W) | 10-30 |
| Input Voltage | 140-270V AC, 110/220V DC |
| Dimension(mm) | 160(L)X155(W)X42(H) |
| LED Colors | CW/WW/NW |

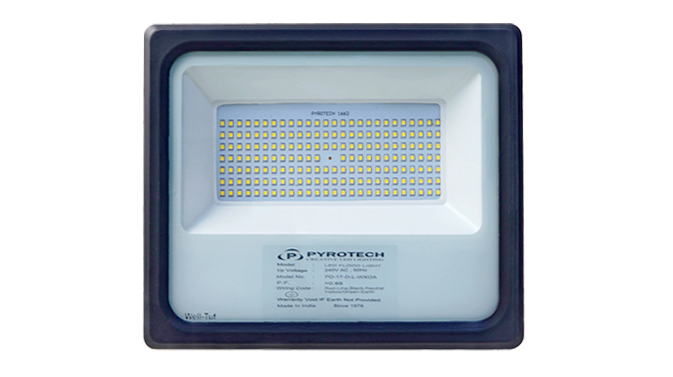

LED FLOOD LIGHT (MINI)
| Ordering Code | PD-17-D-L-WXOA |
| Power Consumption (W) | 40-50 |
| Input Voltage | 140-270V AC, 110/220V DC |
| Dimension(mm) | 213(L)X203(W)X46(H) |
| LED Colors | CW/WW/NW |
LED FLOOD LIGHT (MINI)
| Ordering Code | PD-17-D-L-WXOA |
| Power Consumption (W) | 60-70 |
| Input Voltage | 140-270V AC, 110/220V DC /24V AC |
| Dimension(mm) | 193(L)X235(W)X65(H) |
| LED Colors | CW/WW/NW |

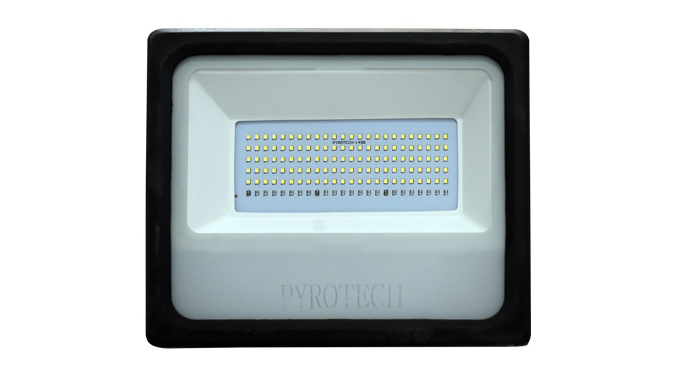

LED FLOOD LIGHT
| Ordering Code | PD-17-D-L-WXOA |
| Power Consumption (W) | 80-120 |
| Input Voltage | 24/140-270V AC,110/220V DC |
| Dimension(mm) | 282(L)X248(W)X50(H) |
| LED Colors | CW/WW/NW |

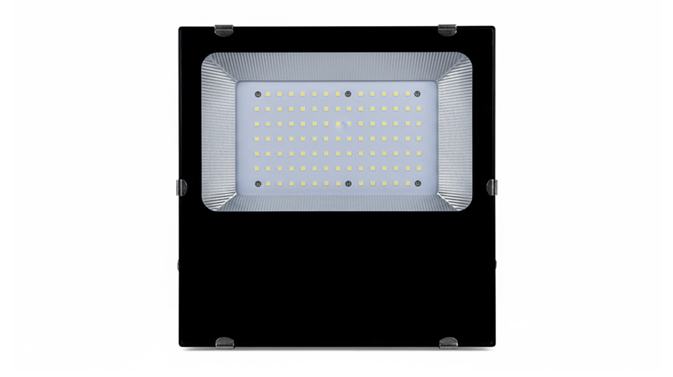

LED FLOOD LIGHT
| Ordering Code | PD-17-D-L-WXOA |
| Power Consumption (W) | 130-160 |
| Input Voltage | 140-270V AC, 110/220V DC |
| Dimension(mm) | 270(L)X335(W)X70(H) |
| LED Colors | CW/WW/NW |
LED FLOOD LIGHT
| Ordering Code | PD-17-D-L-WXOA |
| Power Consumption (W) | 180-200 |
| Input Voltage | 140-270V AC, 110/220V DC |
| Dimension(mm) | 335(L)X270(W)X70(H) |
| LED Colors | CW/WW/NW |
LED FLOOD LIGHT
| Ordering Code | PD-17-D-L-WXOA |
| Power Consumption (W) | 200-240 |
| Input Voltage | 140-270V AC, 110/220V DC / 24V AC |
| Dimension(mm) | 407(L)X302(W)75(H) |
| LED Colors | CW/WW/NW |
LED FLOOD LIGHT
| Ordering Code | PD-17-D-L-WXOA |
| Power Consumption (W) | 250-400 |
| Input Voltage | 140-270V AC, 110/220V DC |
| Dimension(mm) | 460(L)X495(W)60(H) |
| LED Colors | CW/WW/NW |

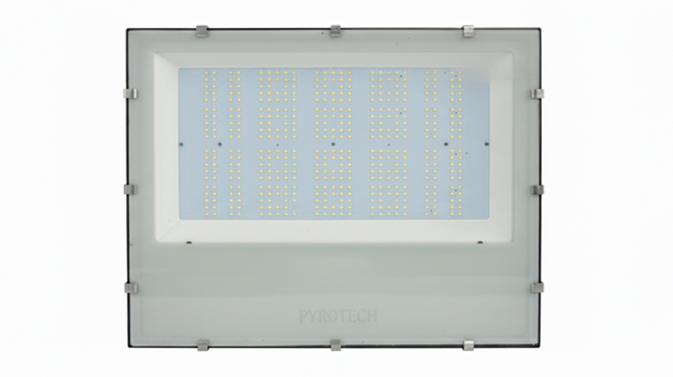

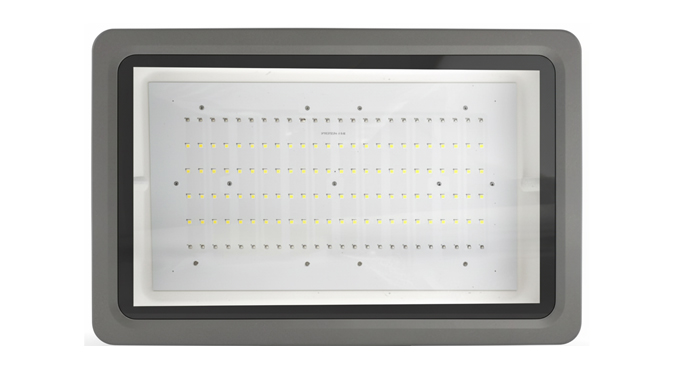

LED FLOOD LIGHT
| Ordering Code | PD-17-D-L-WXOA |
| Power Consumption (W) | 450-500 |
| Input Voltage | 140-270V AC, 110/220V DC |
| Dimension(mm) | 400(L)X600(W)175(H) |
| LED Colors | CW/WW/NW |
